550cc Toyota 2JZ 2JZGE 2JZGTE SouthBay Fuel Injectors

$490.00
In stock
SKU
3421

Proudly Accepting

major-credit-card-logos-png-5_1

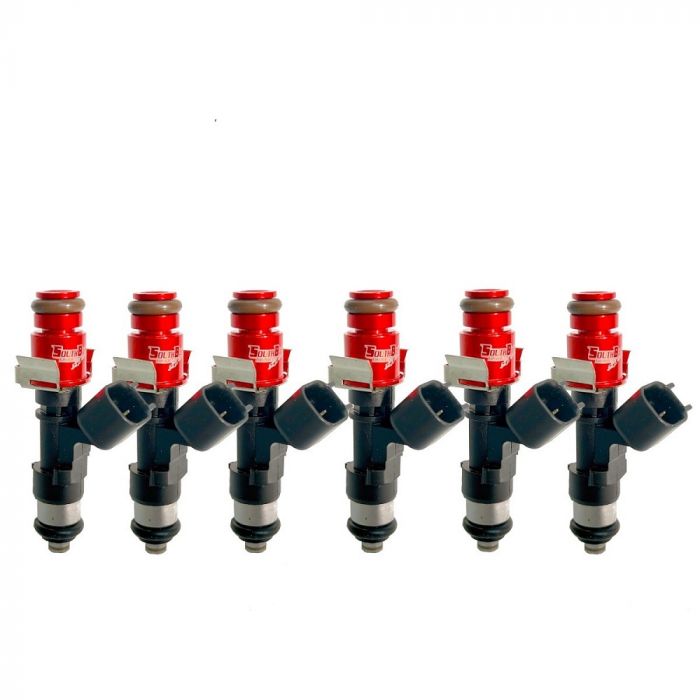

550cc Bosch High Impedance Toyota 2JZ 2JZGE 2JZGTE

Stainless Steel SS compatible with all fuels including oxygenated fuel with MTBE, FTW, Q16, M5, C45

SouthBay's "TruFlow" 550cc Fuel injectors maintain precise control of fuel delivery and atomization for more power better throttle response and improved fuel economy.

550cc/min at 43.5 PSI (3 BAR)
Latency (Dead Time): 0.450 at 14 volts
Tested Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

Optimized in house and flow matched dynamically to within ±1%. Full data sheet provided with each set. EV-14, saturated High resistance, no inline resistors or resistor box required for use. Extenders and pigtails for your installation included in the price along with flow data and dead times.  High Impedance injector.

Bosch Fuel Injector for High Performance Off-road applications. This injector will withstand pressures more than 7 Bar making them suitable for boosted motors. All fuel capability. For use on domestic and import off road applications. For Highly Modified Engines.

48mm O-Ring to O-Ring USCAR Electrical Connector Exact OE Fit, Form, and Function Includes O-Rings for easy installation.
